Products Description
Luhang airbag heavy lifting and transfer solutions are cost effective and flexible. This technique needs only compacted ground and minimum facilities that is specially suitable for temporary heavy lift and transfer projects. Luhang high-pressure heavy lifting airbags are the most strong bags in the world, one piece bag can lift 300-500 tons weight to 50 cm height. Another peerless character of our lifting bags is they can roll steadily with the load. So Luhang high-pressure heavy lifting airbags are especially suitable for huge structure lifting and relocation. The common mega structures had been successfully lifted and moved by airbags include concrete caissons, pumphouses ,steel cofferdams, bridge blocks and tanks. All of them have high structure strength and wide bottom. Also there are some special objects had been relocated by airbags such as water diversion pipes and statues.
Solution Advantages
Saving
Moving caisson with airbags can cut off 70% budget comparing with trolley method.
Safe
Airbags have big contact area with transported object, the low reaction force is good for structure safety.
Convenient
Air bags can move structure strightly in line or steer structure to anywhere.
Specification and Model
| Air Bag Parameter | High-pressure Heavy Lifting Airbags Size |
| Product Name | ship launching marine rubber airbags |
| Airbags Diameter (m) | 0.8 ~ 2.5m, or customized diameter |
| Effective Length (EL) | 6 ~ 25m, or customized length |
|
Total Length (TL) |
7 ~ 27m, or customized length |
| Loading Capacity | 10 ~ 40 ton/m, or customized capacity |
| Model of Airbags | QP-ordinary, QG-high-bearing, QS-superhigh bearing |
You can choose the required diameter and effective length to meet your projects. The below specification only is our standard specification arrange. Other specifications high-pressure heavy lifting airbags also can be supplied upon clients' request.

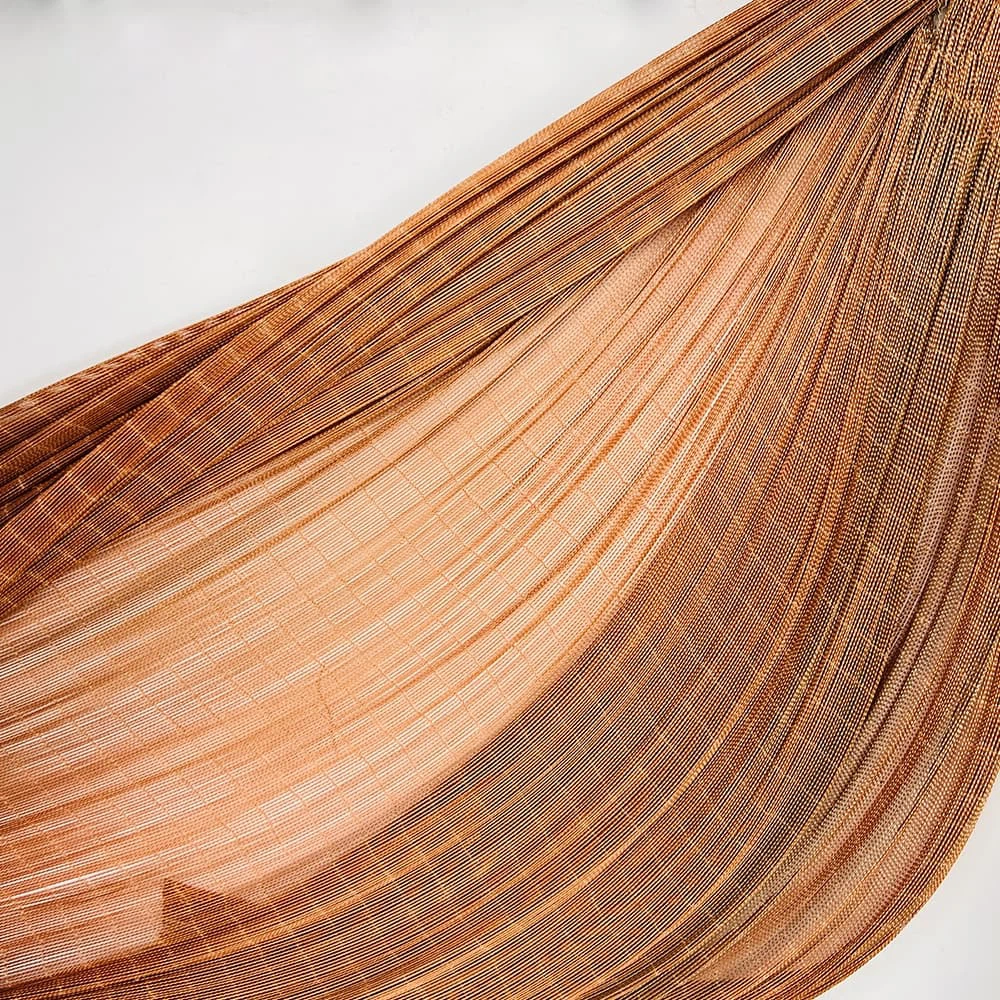

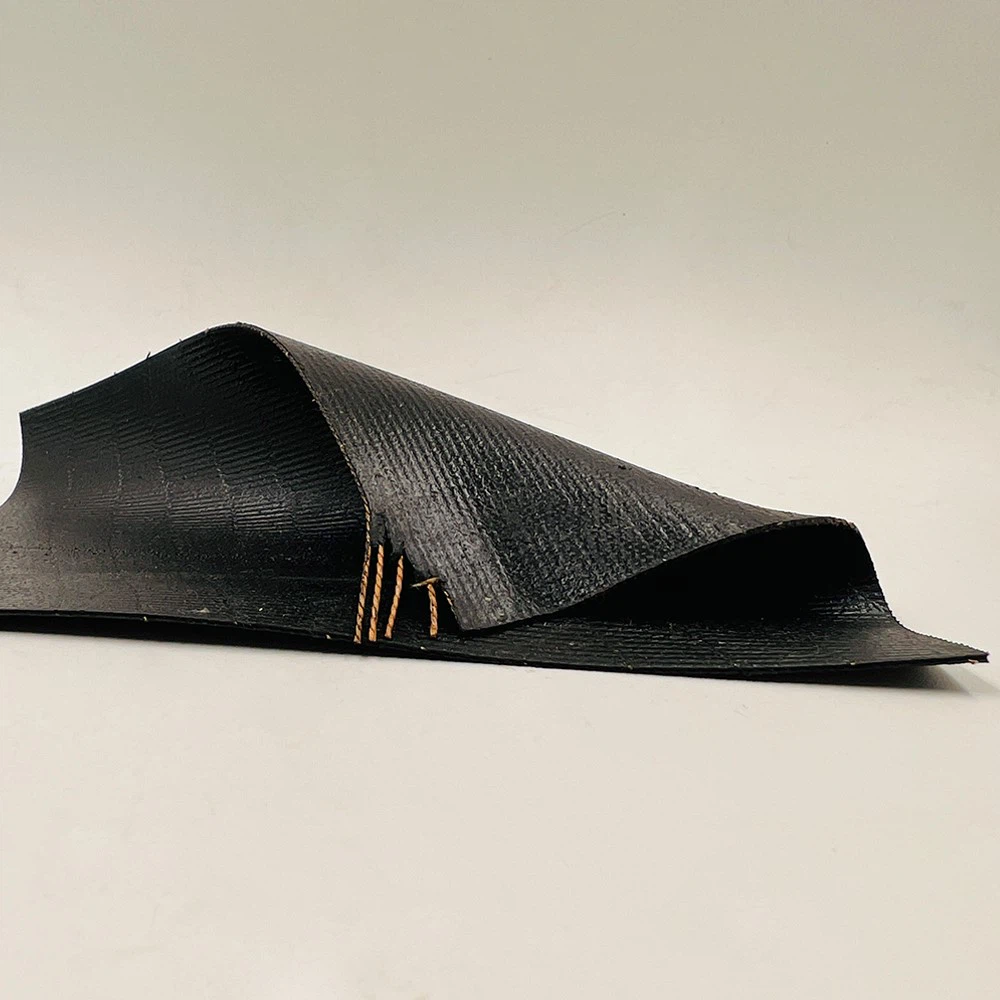

Heavy lifting airbags are categorized by the following three types according to the bearing capacity, per meter in length. We define the number of layers, which means the number of Synthetic-tyre-cord layers, in order to confirm the Safety Working Pressure. Another type is available upon clients' request.
QP
Ordinary airbag - with 3, 4 or 5 layers of cord fabric.
QG
High-bearing capacity airbag - with 6, 7, or 8 layers of cord fabric.
QS
Superhigh-bearing capacity airbag - with 9, 10, or more layers of cord fabrics as a custom request.
Products details
airbag Application
Ship Launching
Ship Lifting
Buoyancy Support
Heavy Lifting
Pipeline Buoyancy Airbag

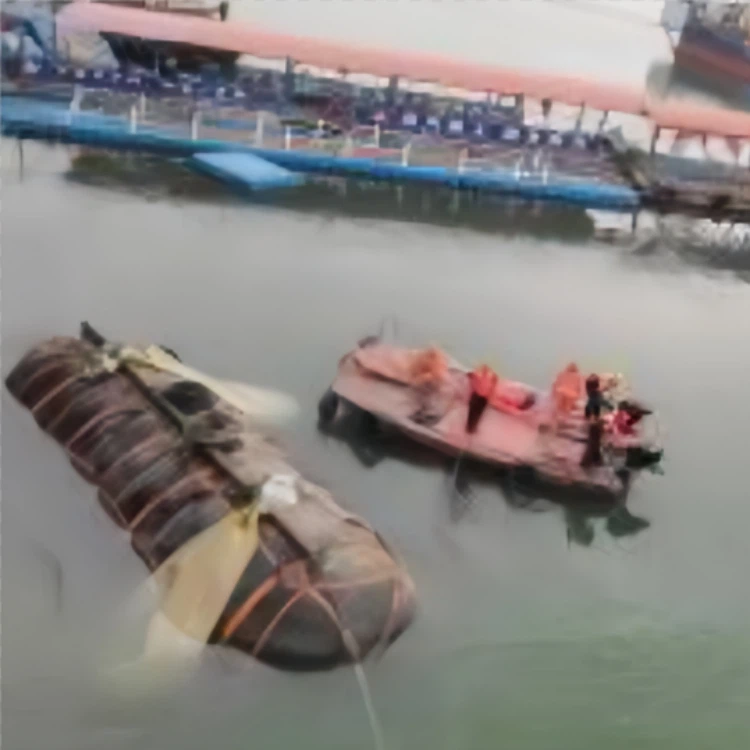

Marine Salvage
Airbag production process
