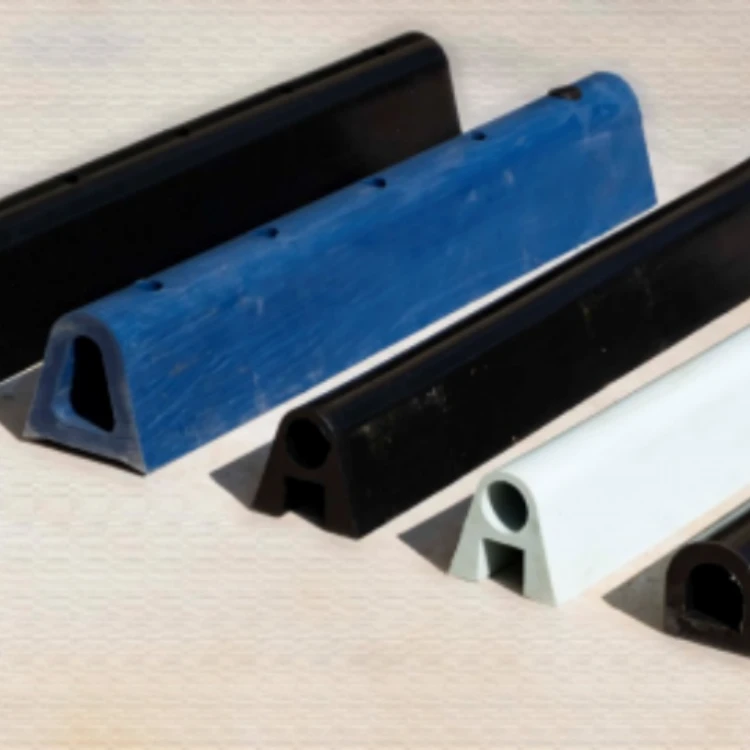

D-type polyurethane fender
Contact Person: Fairy Fan
Email:Fairy@luhanggroup.com
Tel:+86 19063952909
Whatsapp/WeChat:+86 19063952909

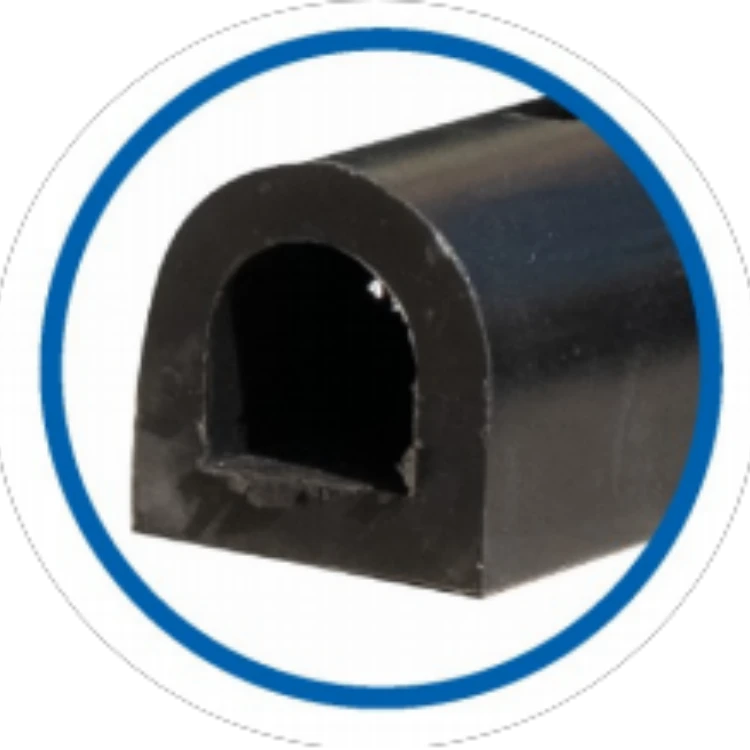

1. The cross-section of the D-type fender is semi-circular and it is hollow throughout.
2. It has a large energy absorption capacity, low reaction force and light weight.
3. It is easy to install and maintain, and is suitable for smaller public vessels and yachts. Our company has currently developed six types of D-type polyurethane fenders for selection: D-200/200, D-150/150, D-100/100, D-100/80, D-80/60, D-70/70 and D-60/50.
Products Specification
| Serial Number | Model | Specification (Width × Height × Length) MM | Weight (KG) |
|---|---|---|---|
| 1 | Type D | 200×200×1000 | 16 |
| 2 | Type D | 150×150×1000 | 10.6 |
| 3 | Type D | 100×100×1000 | 6.2 |
| 4 | Type D | 100×80×1000 | 6 |
| 5 | Type D | 80×60×1000 | 3.4 |
| 6 | Type D | 70×70×1200 | 3.3 |
| 7 | Type D | 60×50×1000 | 1.6 |
Installation method
Installation Instructions:
1. Weld the fixing bolts at the corresponding positions on the hull according to the installation diagram.
2. Install the fender on the hull as shown in the figure and fasten it with bolts.
