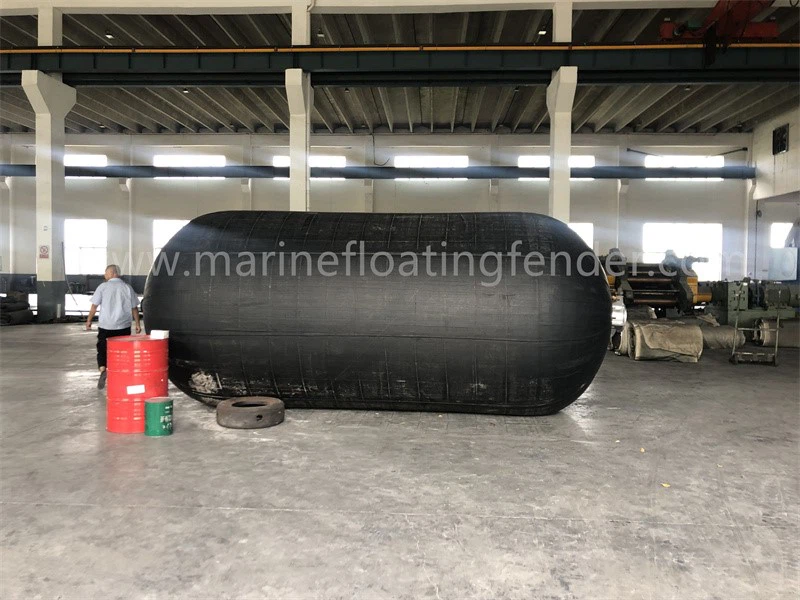

The description of hydro-pneumatic rubber fender
A modified type of pneumatic rubber fender, specifically designed for use on submarines, is the hydro-pneumatic rubber fender. This fender is partially filled with a combination of water and air, and is fitted with a counterbalance to maintain its upright position, thereby providing consistent protection to the submerged hull of the vessel.
These materials offer superior shock absorption, dissipating the force of impact when a vessel collides with a semi-submersible fender, resulting in reduced stress on the vessel's hull and submerged components.
In addition to material selection, the installation method of semi-submersible fenders is flexible. They can be installed at the edge of the dock or at specific locations, or customized according to actual needs. Some advanced semi-submersible fenders are equipped with automatic control systems that can adjust and move automatically according to ship entry and exit and dock usage.The clever design significantly enhances the usefulness and ease of use of the hydro-pneumatic rubber fender, offering a more dependable assurance for terminal safety supervision.
Specification
Submarines and other vessels that make contact below the waterline need a special fendering solution. Hydro-pneumatic fenders are filled with air and water,then fitted with a counterweight to stand vertically and protect submerged hulls.
LUHANG offers customized calculations for polytropic situations involving saturated air, different air-to-water ratios, hull shapes, and other factors to accurately forecast the performance of Hydro-pneumatic fenders.
|
Fender Size |
Water |
Compression |
Initial Pressure(50KPa) |
||
|
Diameter(mm) |
length(mm) |
EA(KNm) |
FR(KN) |
||
|
2000 |
4000 |
60 |
45 |
99 |
385 |
|
0 |
60 |
431 |
1177 |
||
|
2000 |
6000 |
65 |
45 |
155 |
599 |
|
0 |
60 |
647 |
1766 |
||
|
2500 |
5500 |
65 |
45 |
223 |
687 |
|
0 |
60 |
928 |
2037 |
||
|
3300 |
6500 |
60 |
45 |
616 |
1247 |
|
0 |
60 |
1913 |
3169 |
||
|
Note: Customized size available |
|||||

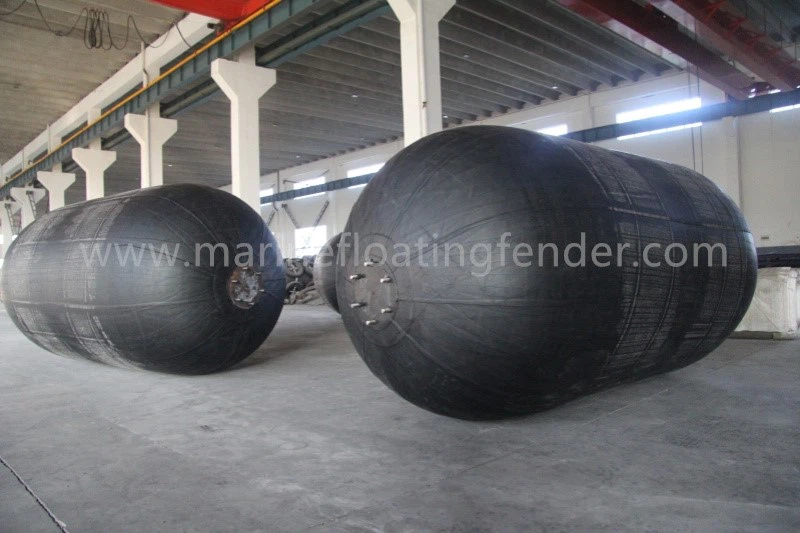

Hydro Pneumatic Rubber Fender Structure
The structure
Inner rubber
Rely on the fender to ensure the air tightness of the fender to prevent gas leakage and maintain the air pressure of the fender.
Middle layer
The reinforcement layer is the skeleton layer of the fender, which is made up of multiple layers of glued with high strength cord fabric
Outer rubber
The outer rubber layer covers the outer surface of the fender to protect the fender from external force damage and wear.
Fender Body:
Pneumatic rubber fender body.
Counterweight
used to balance buoyancy and pull the fender to prevent position shift caused by the impact of waves.
Install the fixed cable chain.
The advantage of hydro pneumatic rubber fender
Although the appearance of a hydro-pneumatic fender is similar to a pneumatic fender, it has a special advantage as following:
- Performance can be adjusted by altering the air-water ratio
- A required draft can be adjusted to suit berthing.
- Low hull pressures
- Self-adjustment during tidal variation
- Low installation and maintenance cost

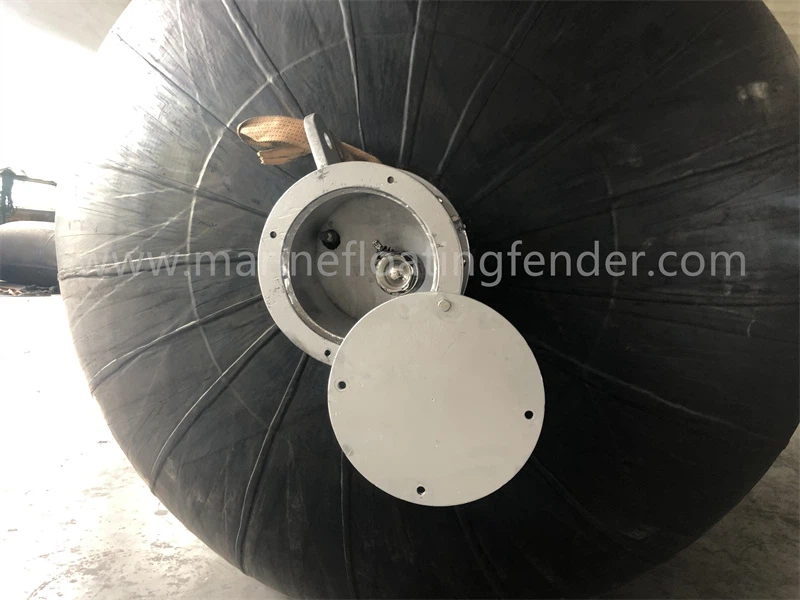

Hydro Pneumatic Rubber Fender Inflation Process
The submarine fender must first have an inflatable rod installed.
In the next phase, utilize a wrench to take out the valve core and place it to the side.
Then connect the quick connector for inflation; the inflation pressure should be 0.05-0.08 MPa, with the recommended pressure being 0.05 MPa.
A pressure gauge must be installed during the inflation process to observe the internal pressure and prevent overinflation
Finally, tighten the valve core with a wrench.
Applications of Hydro Pneumatic Rubber Fender
- Containers, tankers, LNG carriers and bulk cargo ships;
- Fast ferries and aluminum-hulled vessels;
- Tugboats & Yachts;
- Offshore platforms & other ocean platforms;
- Kinds of terminals;
- Temporary or permanent installations;
- Rapid response and emergency fendering;
- As stand-off fenders to realign ships with shore facilities.
