Products Description

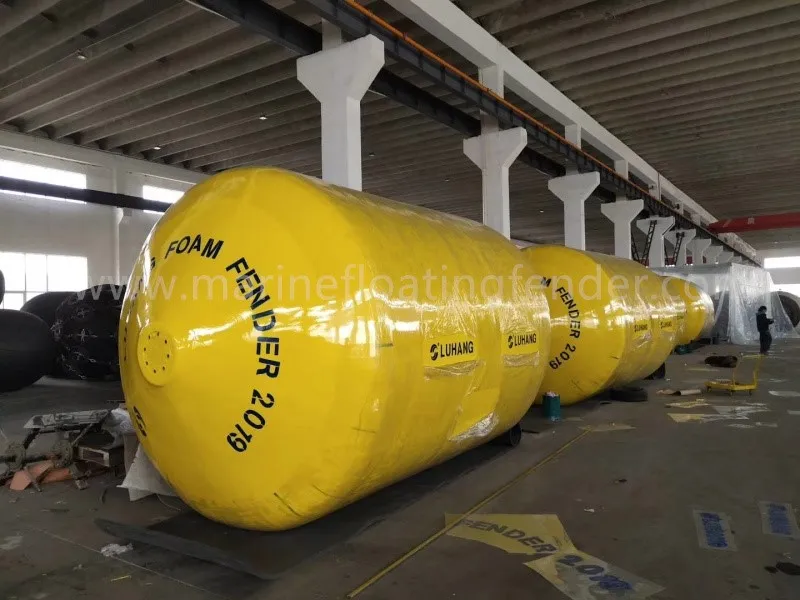

Foam boat fenders, known as EVA solid fenders, are a modern type of fender that utilizes lightweight, highly elastic foam as a cushion material. These fenders are commonly used in harbor, offshore, STS, and STD operations. The Luhang Foam Filled Solid Fender is crafted from environmentally friendly and highly elastic polymeric materials. long service life and high economic value of this product is achieved by the high quality material with performance of high strength, high elasticity, high adhesion, anti-leakage,and aging resistance.
|
D x L |
LOW REACTION |
STANDARD CAPACITY |
HIGH CAPACITY |
EXTRA HIGH CAPACITY |
||||
|
(mm) |
E A |
R F |
E A |
R F |
E A |
R F |
E A |
R F |
|
kNm |
kN |
kNm |
kN |
kNm |
kN |
kNm |
kN |
|
|
300 x 500 |
||||||||
|
500 x 1,000 |
7 |
42 |
10 |
67 |
14 |
79 |
19 |
112 |
|
600 x 1,200 |
9 |
53 |
15 |
89 |
19 |
116 |
28 |
169 |
|
1,000 x 1,500 |
28 |
102 |
47 |
173 |
61 |
227 |
89 |
329 |
|
1,000 x 2,000 |
41 |
151 |
68 |
254 |
88 |
329 |
129 |
480 |
|
1,200 x 2,000 |
54 |
169 |
91 |
280 |
118 |
365 |
172 |
534 |
|
1,200 x 2,500 |
72 |
222 |
121 |
369 |
157 |
480 |
228 |
703 |
|
1,200 x 3,000 |
96 |
294 |
160 |
489 |
207 |
632 |
302 |
925 |
|
1,350 x 2,500 |
91 |
249 |
152 |
418 |
197 |
543 |
287 |
792 |
|
1,500 x 3,000 |
146 |
356 |
244 |
596 |
317 |
774 |
464 |
1,130 |
|
1,700 x 3,000 |
169 |
369 |
282 |
618 |
366 |
801 |
536 |
1,174 |
|
2,000 x 3,500 |
273 |
507 |
454 |
845 |
591 |
1,099 |
864 |
1,606 |
|
2,000 x 4,000 |
324 |
601 |
540 |
1,005 |
701 |
1,303 |
1,025 |
1,904 |
|
2,200 x 4,000 |
386 |
653 |
643 |
1,088 |
836 |
1,415 |
1,222 |
2,068 |
|
2,200 x 4,500 |
447 |
757 |
746 |
1,263 |
969 |
1,640 |
1,416 |
2,397 |
|
2,500 x 5,500 |
623 |
916 |
1,022 |
1,516 |
1,398 |
1,943 |
1,899 |
2,795 |
|
3,000 x 5,000 |
879 |
1,072 |
1,464 |
1,788 |
1,904 |
2,326 |
2,782 |
3,398 |
|
3,000 x 5,500 |
1,022 |
1,250 |
1,704 |
2,082 |
2,217 |
2,705 |
3,239 |
3,954 |
|
3,000 x 6,000 |
1,167 |
1,423 |
1,946 |
2,375 |
2,530 |
3,087 |
3,697 |
4,515 |
|
3,000 x 6,500 |
1,312 |
1,601 |
2,187 |
2,669 |
2,842 |
3,470 |
4,154 |
5,071 |
|
3,300 x 4,500 |
899 |
1,014 |
1,498 |
1,690 |
1,948 |
2,193 |
2,847 |
3,207 |
|
3,300 x 6,500 |
1,452 |
1,637 |
2,421 |
2,731 |
3,148 |
3,550 |
4,600 |
5,187 |
|
4,000 x 8,000 |
2,636 |
2,629 |
3,793 |
3,711 |
5,227 |
5,189 |
6,973 |
6,921 |
|
4,500 x 9,000 |
3,436 |
3,408 |
4,779 |
4,726 |
6,586 |
6,533 |
8,785 |
8,729 |
|
6,000 x 8,000 |
5,274 |
5,893 |
7,320 |
8,139 |
9,520 |
11,318 |
12,910 |
14,520 |
|
Note: Customized size available. |
||||||||
Foam Boat Fenders Features
• With a high safety factor, there is no requirement for inflation and no risk of explosion.
• The bright color makes it simple to identify and dock at night.
• Additionally, it offers enhanced performance with greater energy absorption and a relatively lower reaction.
• Extremely long lifespan: more than 10 years
• Adaptable to the tide
• Stability:Less affected by temperature and humidity(-30℃～+60℃)
• Low maintenance
• No damage to high grade ship paint
• Anti-biological adhesion
You can custom the color according to your require:
Foam Boat Fenders Application
- Cruise ships
- Container vessels
- Bulk cargo
- Roro and ferries
- Oil and gas tankers
- General Cargo
- LNg and oil terminals
- Ship-to-ship operations
- Military application
- Open sea terminals
- Large tidal wave docks
There are mainly two types of such fender
♦ Portable Foam Fender (usually small size)
♦ The Flange Foam Boat Fender is typically designed for larger foam-filled fender with be purchased with a chain net, a chain net with tires, or just the fender body with no net.
♦ boat side foam fender(custom size according to the boat size)
♦ donut fender(jetty protection)
♦ sea floating barrier
FAQ
1."What kind of certificate can you provide for rubber inflatable fenders?"
Answer: CCS, BV, SGS etc. certificate is available.
2."What's the warranty period of your rubber inflatable fenders ?"
Answer: Our warranty period is 2 years. If our rubber inflatable fenders are found to have a quality issue, we will repairing or replacing them for you.
3."What's the lifespan of your rubber inflatable fenders?"
Answer: Designed lifespan of our rubber inflatable fenders is 6 to 10 years
4."What's the MOQ of your rubber inflatable fenders?"
Answer: Our MOQ is 1PC
5."I want to try your rubber inflatable fenders, but I never use it and don't know how to use ,can you help me?"
Answer: Don't worry. We will send instruction book together with rubber inflatable fenders
6."I have ships but don't know how to choose the size of rubber inflatable fenders ,can you help me?"
Answer: Don't worry .We have more than 30 years' experience. Pls tell me information of your ship, we can suggest suitable rubber inflatable fenders size and quantity for you
7."Are you factory or trading company ?"
Answer: We are manufacturing factory, located in Qingdao city
8."What's the delivery time and payment terms ?"
Answer:Delivery time is based on product model and order quantity. normally it is around 7-15 working days. The payment could paid by T/T, L/C,Alibaba, etc.
Company Profile
Qingdao Luhang Marine Airbag and Fender Co., Ltd. has its headquarters situated in the Jidong Industrial Park, which is located in Jimo City, Qingdao. Our factory takes up the area of 4,0000 square meters with building area of 30000 square meters and has registered asset of 16million US dollars.We have devoted on marine airbags and fenders about more than 30 years.
Through many years' development and accumulation,we have developed a new high-tech enterprise with an integration of scientific
research and design,product R&D,sales and technical service.with advanced manufacturing equipment,strict QC,we are supplying high
quality products and after-sale service and widely appraised by domestic and oversea customer. Application:Products are widely
used in ship berthing, ship docking, ship launching, jetty protection, mark the channel direction etc.
