Customizable Size 4-14 Layers Marine Rubber Ship Airbag For Launching and Landing
Ship launching airbag, consists of inner rubber layer, synthetic tire cord reinforced rubber layer and outer rubber layer.

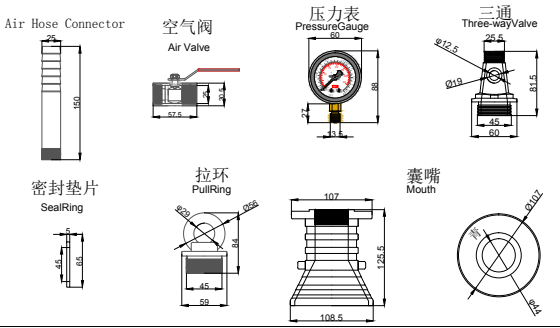

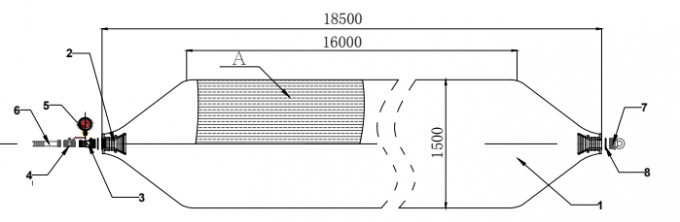

The airbag body, a cylindrical roller, is inflated to seal the air inside, and two hemispherical conical parts at both ends, called the airbag head, connect the airbag body and the airbag mouth. The mouth of the ship salvage airbag is fitted with a metal valve for pulling the airbag.
Detailed Product Description
| Material: |
Natural Rubber |
Application | ship launching/landing |
| Diameter: | 0.8/1.0/1.2/1.5/1.8/2.0/2.5/3.0/4.0 | Color | Black |
| Length | 5m--25m | Packing |
Pallet |
| Layer | 4-14layers | Working Pressure: | 0.05MPa-1.0MPa |
LUHANG Technical Services And support
A.Preliminary discussion to understand project needs.
(vessel specs & diagrams, as well as environmental factors like slipway conditions, tide, etc)
B.Site visit to inspect limitations of slipway and environment.
C.Supply whole set of required equipment.
D.Provide customer's engineer teams with trainnings and suggestions:
●Understand operations procedure and execute according to plan.
●Commissioning & operate supplied product equipment.
●Understand & manage potential risks.
●Implement safetyfactors & precautions.
●Best practices in maintenance & storage to prolong products' lifespan.
●Discuss and feedback to adjust operations after finishing a project for better effectiveness innew proiects.
E.On-site consultation services during project operations.
F.Contract ship launching project by rubber airbags
Specification
| Diameter | Safe working pressure | Work high | The bearing capacity | |
| KN/M | T/M | |||
| D=1.5M | 0.11MPa | 0.9m | 103.79 | 10.58 |
| 0.8m | 121.06 | 12.34 | ||
| 0.7m | 138.32 | 14.1 | ||
| 0.6m | 155.59 | 15.86 | ||
| 0.5m | 172.85 | 17.62 | ||
| D=1.8M | 0.09MPa | 1.1m | 99.08 | 10.1 |
| 1.0m | 113.21 | 11.54 | ||
| 0.9m | 127.33 | 12.98 | ||
| 0.8m | 141.46 | 14.42 | ||
| 0.7m | 155.59 | 15.86 | ||
| 0.6m | 169.71 | 17.3 | ||
| D=2.0M | 0.08MPa | 1.2m | 100.65 | 10.26 |
| 1.1m | 113.21 | 11.54 | ||
| 1.0m | 125.76 | 12.82 | ||
| 0.9m | 138.32 | 14.1 | ||
| 0.8m | 150.88 | 15.38 | ||
| 0.7m | 163.43 | 16.66 | ||
| 0.6m | 175.99 | 17.94 | ||
Marine Rubber Airbag Application
1.Ship Launching & Upgrading
2.Weight Lifting & Moving
dshow machinery co.,ltd
Qingdao Luhang Marine Airbag and Fender Co.,Ltd is located in Jidong industrial Park,Jimo City,Qingdao. Our factory takes up the area of 4,0000㎡ with building area of 30000㎡ and has registered asset of 16million US dollars.We have devoted on marine airbags and fenders about more than 30 years.
large enterprise scale
Efficient and precise processing and testing equipment.
Standardized Production
Passed ISO14409 certification and obtained relevant patent certificates.
High-Quality Customized Services
No intermediate links, providing one-stop service from design, processing, mold trial to mass production.
